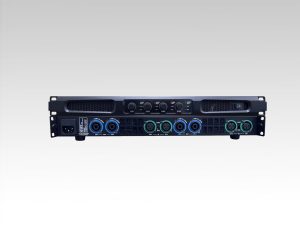

Model: RK-A4800

The use of imported advanced magnetic materials provides strong resistance to magnetic saturation, with high output efficiency, powerful output, and stable operation.

The internal layout of the entire unit is scientifically designed for air flow, with high-efficiency aluminum heat sinks and variable-speed cooling fans to ensure the amplifier operates at lower temperatures.

A comprehensive protection circuit ensures the safety of the equipment, including DC output protection, overload protection, short circuit protection, and overheating protection.

It features a design with low distortion, wide frequency band, low noise, and clipping distortion limiting circuits.

The use of an advanced full-bridge switch-mode power supply system with a comprehensive protection circuit.

카테고리:
매개변수 이름 매개변수 값
Rated Power at 8Ω 4x800W
Rated Power at 4Ω 4x1300W
Rated Power (Bridged 8Ω) 2x2400W
입력 감도 0.775V/1.0V/1.2V/1.4V
주파수 응답 15Hz-30kHz: +/-1dB
입력 임피던스 20kΩ (BALANCED) / 10kΩ (UNBALANCED)
Distortion (THD+N) <0.1% at 8Ω 1kHz
Channel Isolation (1kHz) 50dB (8Ω/1kHz)
Operating Voltage 220V/50HZ/60HZ
Slew Rate 28V/us
Damping Factor Greater than 350/8Ω
Power Fuse 15A
Signal-to-Noise Ratio (A-weighted) 100dB
Machine Dimensions 482mm x 265mm (300mm, including handle) x 88mm
Net Weight 9.3KG
